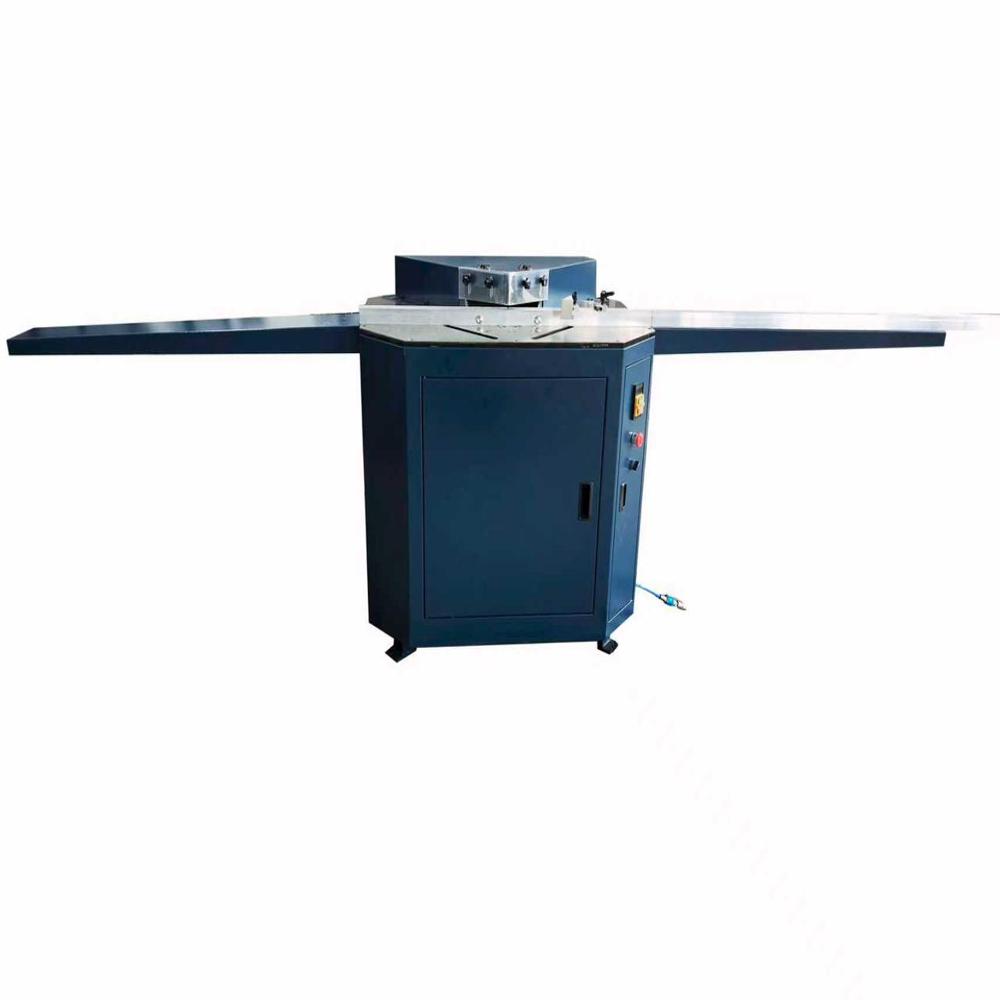

Picture Corner pneumatic double saw cutting machine for photo frame

Picture Corner pneumatic double saw cutting machine for photo frame Specification

Structure
Floor-standing, dual saw head, pneumatic operation

Media
Compressed Air

Power
2.2 kW

Material
Steel body with aluminum worktables

Air Consumption
Approx. 80 L/min

Speed
Up to 2800 RPM

Maximum Torque
N/A (pneumatic system)

Saw Blade Diameter
300 mm

Voltage
220V/380V 3-phase

Application
Precise double mitre cutting for photo frames and mouldings

Weight
Approx. 180 kg

Noise Level
75 dB

Control System
Pneumatic switch with electrical safety interlocks

Dimensions
2500mm (L) x 700mm (W) x 1300mm (H)

Working Length
Up to 3000 mm

Features
Automatic dual saw operation, adjustable positioning stops, dust extraction port

Cutting Angle
45 (typical for photo frame corners)

Picture Corner pneumatic double saw cutting machine for photo frame About

The Picture Corner pneumatic double saw cutting machine is a specialized industrial tool designed for precision 45-degree miter cuts on photo frames. It uses two saw blades driven by compressed air to cut both corners of a moulding simultaneously, ensuring seamless, gap-free, and professional-grade frame joints.

Precision Mitre Cutting

The machine's dual saw heads are synchronized to deliver clean and accurate 45-degree cuts on photo frame mouldings. This ensures tight, professional corner joints every time, which is crucial for high-quality frame assembly. Adjustable stops allow for repeated cuts at precise lengths, thereby increasing workflow efficiency and minimizing material waste.

Reliable and Safe Operation

Featuring a pneumatic switch system with electrical safety interlocks, the saw ensures operator safety throughout cutting operations. The automatic saw movement and floor-standing structure offer stability, while the dust extraction port minimizes airborne particles, supporting a healthier work environment.

Engineered for Versatility and Durability

Constructed from robust steel with aluminum worktables, this machine is designed for longevity and tough workshop conditions. Its large working length, powerful 2.2 kW output, and high-speed cutting capability up to 2800 RPM cater to both small and large-scale frame production needs.

FAQ's of Picture Corner pneumatic double saw cutting machine for photo frame:

Q: How does the Picture Corner double saw cutting machine ensure accurate 45-degree cuts for photo frames?

A: The machine is engineered with automatic dual saw operation and adjustable positioning stops, so each cut is precisely set at 45 degrees. This guarantees perfectly matched mitre joints for photo frames and mouldings.

Q: What materials and lengths can this cutting machine handle?

A: It is suitable for wood, plastic, or similar frame moulding materials, supporting workpieces up to 3000 mm in length due to its spacious bed and dual saw heads.

Q: When is the machine best used in the production process?

A: This machine is ideal for the mitring stage, right before the assembly of photo frame corners. It's most effective when accurate and high-volume angled cuts are required.

Q: Where should the machine be installed for optimal efficiency?

A: Owing to its floor-standing structure and size (2500mm x 700mm x 1300mm), the machine is best placed in a well-ventilated workshop with access to compressed air and a 220V or 380V 3-phase electrical supply.

Q: What is the process for operating the pneumatic double saw cutting machine?

A: The operator securely positions the moulding, adjusts the stops, and activates the pneumatic switch. Dual saw blades automatically cut both ends simultaneously to the precise angle and length.

Q: How does the dust extraction port benefit the user?

A: The built-in dust extraction port reduces debris during cutting, which maintains cleaner workspaces, improves visibility, and helps prolong the life of the machine.

Q: What safety features are incorporated into the machine?

A: Electrical safety interlocks ensure that the saws can only be activated under safe conditions, preventing accidental operation and enhancing overall workplace safety.
